How to Install Exterior Panels in Wet Climate (2026)

Learn how to install exterior panels in a wet climate in 2026. Step-by-step guide covering drainage gaps, sealed edges, fasteners, and trim for lasting results.

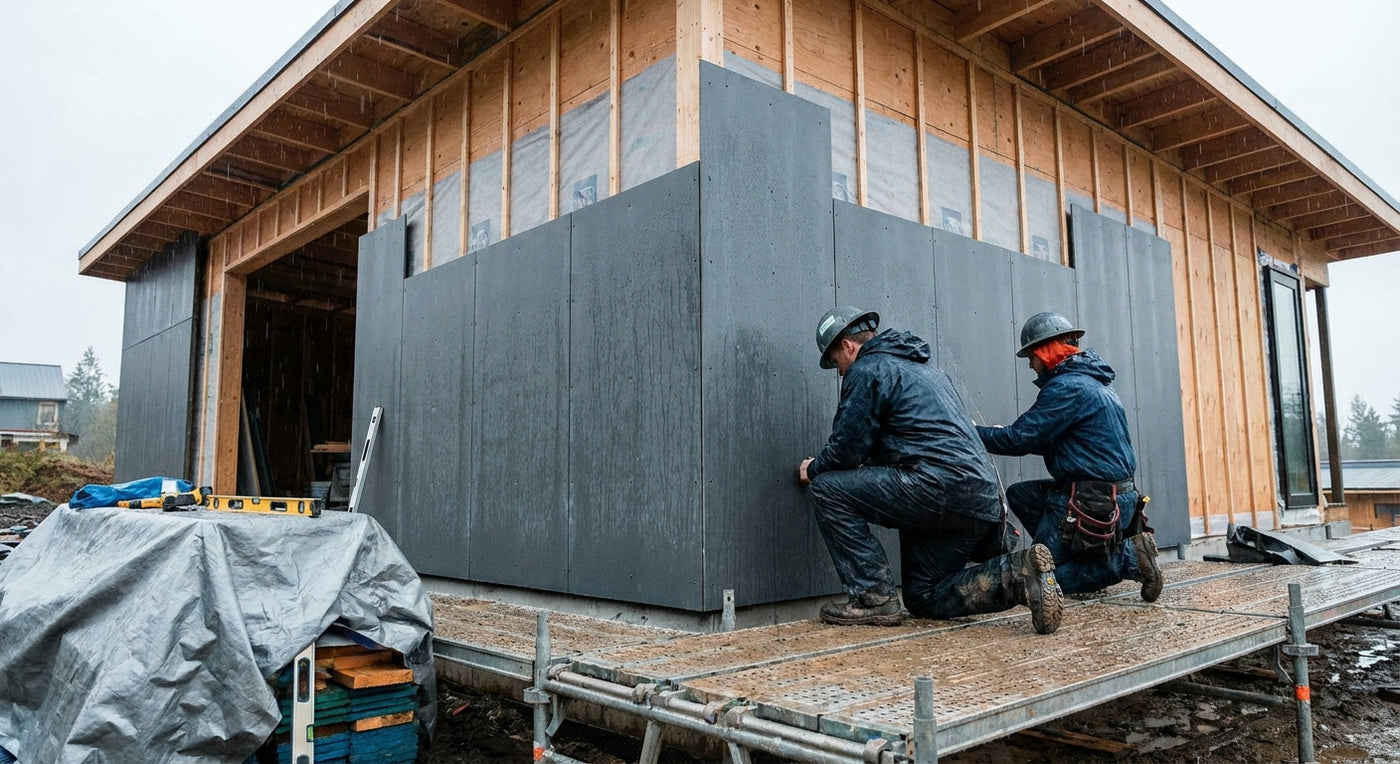

How to install exterior wall panels in a wet climate

Installing exterior wall panels in a wet climate is straightforward when you respect the sequence — surface prep, drainage gap, sealed fastening, and trim. Skip any one of those and you'll be pulling warped panels within 18 months.

TL;DR: To install exterior panels in a wet climate in 2026, you need a clean, plumb substrate, a ventilated drainage gap of at least 3/8 inch behind each panel, corrosion-resistant fasteners, and fully sealed trim at every edge and corner. Akuwood Panel's exterior wall panels are engineered for outdoor exposure, and matching color-coded screws, corner trim, and rubber end caps are available to complete a watertight install. Total install time for a standard 100 sq ft wall runs 4–6 hours.

Why this matters

Moisture is the single biggest reason exterior cladding fails early. In high-rainfall regions — the Pacific Northwest, the Gulf Coast, Florida, and the Northeast — annual precipitation regularly exceeds 50 inches. Wood-look panels trap moisture when installed flat against a substrate with no air movement, and that trapped water drives rot, delamination, and fastener corrosion. The good news: the failure mode is 100% preventable if the install follows the right order of operations.

What you'll need

Tools:

  • Circular saw or miter saw
  • Drill/driver
  • Level (48-inch minimum)
  • Tape measure and chalk line
  • Caulking gun
  • Safety glasses

Materials:

Time: 4–6 hours for 100 sq ft. Add 1 hour per corner or window opening.

Conditions: Do not install below 40°F or when rain is forecast within 4 hours. Panel adhesives and sealants need a dry cure window.

Step 1 — Inspect and prepare the substrate

What it accomplishes: A sound, dry substrate is the only surface exterior panels should touch. Any existing rot, efflorescence, or loose material will accelerate moisture intrusion behind the new cladding.

Tap the existing wall surface in a grid pattern every 12 inches. Hollow sounds indicate delamination or rot — cut out and replace those sections before proceeding. In 2026, building codes in most wet-climate states require a water-resistive barrier (WRB) such as housewrap or self-adhering membrane on wood-framed walls. If yours is missing or damaged, install it now. Overlap horizontal runs by 6 inches and tape all seams. The WRB is your last line of defense if moisture ever gets behind the panel.

Common mistake: Installing directly over painted masonry without testing for efflorescence. Salt deposits break the bond between any furring adhesive and the wall, and water follows the salt path inward.

Expected outcome: A flat, dry wall surface with no movement, no hollow sections, and an intact WRB.

Step 2 — Install horizontal furring strips to create a drainage gap

What it accomplishes: The 3/8-inch ventilated gap between the WRB and the back of your panels allows any water that penetrates the cladding face to drain down and out rather than pool. This is the single most impactful step for longevity in a wet climate.

Snap horizontal chalk lines every 16 inches up the wall, starting 2 inches above grade or any flashing line. Fasten pressure-treated or composite furring strips (minimum 1x3) along each chalk line using 1-1/4 inch corrosion-resistant screws into studs or masonry anchors. Check each strip with a level — any deviation over 1/8 inch across 4 feet will produce a visible bow in the finished cladding. Install a continuous strip of insect screen mesh at the bottom of the cavity and a vented top cap at the top to keep the drainage channel open without letting pests in.

Common mistake: Using untreated timber for furring. In a wet climate, untreated wood in a concealed cavity will rot in 3–5 years and destabilize every panel above it.

Expected outcome: Straight, level furring strips with a consistent 3/8-inch gap behind the panel plane, and screened top and bottom openings.

Step 3 — Cut panels to size and seal all cut edges

What it accomplishes: Factory edges on Akuwood Panel exterior panels are sealed at production. Any cut you make exposes raw core material, and in wet climates, unsealed cut edges absorb water at roughly 3–4x the rate of sealed faces.

Measure and mark panels face-down to prevent surface scratching. Use a fine-tooth circular saw blade (60-tooth minimum) at steady feed speed — forcing the cut tears the edge and creates micro-fissures that hold water. After every cut, apply two coats of exterior-grade end-grain sealer or exterior wood primer to the raw edge. Allow 30 minutes of dry time between coats. For panels meeting rooflines or window sills, cut with a 5-degree back-bevel so the leading edge sheds water rather than holding it flat.

Common mistake: Skipping the back-bevel on horizontal cuts. A square-cut bottom edge in a rainy climate acts as a ledge that holds standing water against the panel face for hours after a storm.

Expected outcome: Sealed cut edges with no raw core exposed, back-beveled horizontal cuts, and panels ready to fasten.

Step 4 — Fasten panels with color-matched screws at correct spacing

What it accomplishes: Correct fastener spacing prevents panel movement without over-constraining it — exterior panels expand and contract with temperature swings of up to 30°F between seasons.

Start at the bottom course and work upward. Align the first panel using a level; this row controls the alignment of everything above it. Drive color-matched screws through the designated fastening slots — not through the panel face unless the design calls for face-fixing. Space fasteners every 12 inches along each furring strip. Leave a 1/8-inch gap between panel ends at vertical joints to allow thermal expansion. Do not overtighten: the screw head should sit flush, not countersunk, so the panel can float slightly. For corners, hold panels back 1/2 inch and install corner trim over the joint rather than butting two panel faces together.

Common mistake: Face-screwing panels in the center of the board rather than at designated fastening points. Center-fixed panels can't expand at the edges and will bow outward in summer heat.

Expected outcome: Plumb, flat panel rows with consistent 1/8-inch expansion gaps and flush screw heads.

Step 5 — Install corner trim, finishing trim, and rubber end caps

What it accomplishes: Trim and end caps close the four most water-vulnerable points: vertical corners, top edges, bottom edges, and exposed panel ends. Water enters at terminations first — this step is what separates a 5-year install from a 20-year one.

Snap a plumb chalk line at each external corner before setting corner trim. Apply a bead of polyurethane sealant behind the trim flange before pressing it to the wall, then fasten with color-matched screws at 16-inch intervals. At the top of the panel run, install finishing trim with the same sealant-behind-flange method. Press rubber end caps firmly onto every exposed panel end — they should click into the profile and require no adhesive, but a drop of exterior-grade contact cement on each cap in coastal or high-rain zones adds insurance. After all trim is set, run a continuous bead of exterior polyurethane sealant along every trim-to-panel joint and tool it smooth.

Common mistake: Omitting sealant behind trim flanges and relying on mechanical fasteners alone. Trim flanges flex in wind; without sealant, a gap opens after the first heavy storm and water tracks directly behind the panel.

Expected outcome: Sealed corners and edges with no exposed panel ends, trim sitting flat against the panel face, and a continuous sealant line at every junction.

Step 6 — Final inspection and sealant touch-up

What it accomplishes: One 20-minute walk-around before the install is considered done catches gaps that are invisible at 3 feet but obvious after the first rain.

Run a garden hose along the top of the installation for 5 minutes and watch for water tracking behind panels or weeping through joints. Mark any wet spots with tape. After drying, inject sealant into any gaps larger than 1/16 inch. Check that the bottom drainage gap is clear — press a thin screwdriver into the mesh screen at the base; if it meets resistance, clear the blockage. Re-inspect after the first major rainfall event and again at 6 months.

Expected outcome: No water intrusion behind panels, drainage gap clear, all trim joints dry after hose test.

Troubleshooting

Water tracks down the wall behind a panel. The WRB has a breach or an unsealed top trim joint. Remove the top trim, reseal the WRB with self-adhering tape, rebed the trim in fresh sealant.

Panel faces show dark water stains after rain. Horizontal cut edges are absorbing water. Remove the affected panels, apply two more coats of end-grain sealer, let cure 24 hours, reinstall.

Screws are backing out or corroding after 12 months. Non-stainless fasteners were used or the driving torque was set too high, stripping the thread. Replace with the correct color-matched stainless fasteners and set driver torque to hand-tight plus 1/4 turn.

Panels bow outward in summer. Expansion gaps were too tight or panels were center-face-fixed. Remove affected panels, re-cut expansion gaps to 1/8 inch minimum, and relocate fasteners to the designated slots.

Rubber end caps keep falling off. Panel ends have debris or moisture in the channel. Clean with isopropyl alcohol, apply contact cement to the inner cap face, press for 30 seconds.

Corner trim gaps open in winter. Sealant behind the flange was skipped or the wrong sealant type was used. Remove trim, apply polyurethane (not silicone — silicone won't bond to painted trim), reinstall.

Tools and resources

What to do next

If your project involves fence posts or freestanding structures where panels face rain from multiple sides, the approach differs slightly — read how to install exterior wall panels on a fence post for the post-wrap method. For homeowners wondering which color holds up best in wet conditions, stone gray exterior panels for contemporary home facades covers long-term finish performance by colorway.

FAQ

How do you install exterior panels in a wet climate without them warping? Install a 3/8-inch ventilated drainage gap behind every panel using horizontal furring strips. Seal all cut edges before installation. Use stainless-core fasteners with expansion gaps of 1/8 inch at every vertical joint. These three steps prevent the moisture trapping that causes warping.

Do exterior wood-look panels need a drainage gap? Yes. Without a drainage gap, any water that gets behind the panel has nowhere to go and pools against the back face. In climates with more than 30 inches of annual rainfall, a ventilated gap is the difference between a 5-year and a 20-year install.

What screws should I use for exterior wall panels in a rainy area? Use stainless-steel core screws — not zinc-plated or uncoated steel. Akuwood Panel's color-matched exterior screws have a stainless core and a coated head that resists both corrosion and color mismatch. In coastal zones within 1 mile of saltwater, 316 marine-grade stainless is the better choice.

How far apart should furring strips be for exterior panel installation? Space horizontal furring strips every 16 inches on center. This gives you a fastening point at the top and bottom of most standard panel widths and prevents mid-panel flex. In high-wind zones (ASCE 7 exposure category C or D), reduce to 12-inch spacing.

Can I install exterior panels directly over concrete or masonry in 2026? Yes, but the WRB and furring strip steps are non-negotiable. Masonry is not a flat surface, and it holds moisture. You need the drainage gap and you need masonry anchors rated for the panel weight — typically 1/4-inch sleeve anchors at 16-inch spacing.

How long do exterior cladding panels last in wet climates? When installed with a drainage gap, sealed edges, and corrosion-resistant fasteners, quality composite-core exterior panels are rated for 20–25 years in wet climates. Annual sealant inspection at trim joints and a re-application every 5–7 years keeps them in that range.

Do I need to weatherproof exterior panels after installation? The panels are factory-sealed, but trim joints and cut edges need field-applied sealant. Re-inspect sealant lines every 12 months and reapply wherever cracking or separation appears. For a detailed weatherproofing schedule, see how to weatherproof exterior wall cladding panels.

What is the best exterior panel color for a wet, rainy climate? Darker finishes — black and stone gray — show water marks less than lighter finishes like birch. Functionally, all four Akuwood Panel exterior finishes perform identically in wet conditions; color choice is purely aesthetic.

One last thing

The bottom 12 inches of any exterior panel installation take 80% of the splash-back load from ground rain. If you only have budget for one extra round of end-grain sealant, put it on the lowest course — two additional coats on the bottom panel faces and a generous sealant fillet where the finishing trim meets the wall will do more for long-term durability than any other single step.
